Universal Torque Wrench Calibration Machine

(UTWCM)

The AWS UTWCM provides an efficient means of calibrating and testing manually operated torque wrenches to ISO 6789:2017 or company specific standards and specifications.

Technical Specification

Rated Torque500Nm, 1,500 Nm or 3,000 Nm
Dimensions 500Nm Version110cm Width by 90cm Height. Requires desk space of 70cm wide and 75cm deep. It overhangs the front of the desk by 45cm, and requires 56cm of space above the table.
Dimensions 1,500Nm Version77cm Length by 205cm Width by 135cm Height
Dimensions 3,000Nm Version77cm Length by 266cm Width by 135cm Height
Operating Voltage110 / 230 V AC 50~60 HZ
Spline Drive Transducer Interface1/4", 3/8", 1/2", 3/4", 1", 1.5" female square drive
Max Wrench Length 500Nm Version850mm
Max Wrench Length 1,500Nm Version1800mm
Max Wrench Length 3,000Nm Version2400mm
Cross Bed Travel700mm

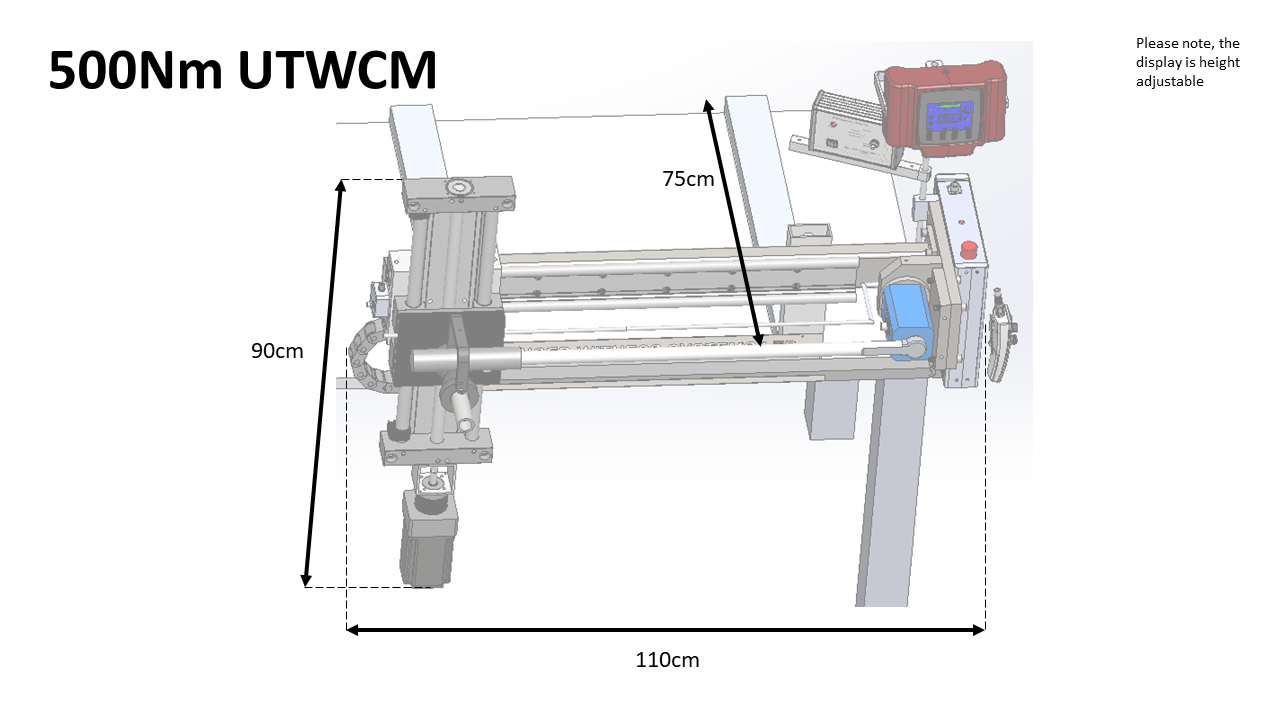

500Nm UTWCM Dimensions

1500Nm UTWCM Dimensions

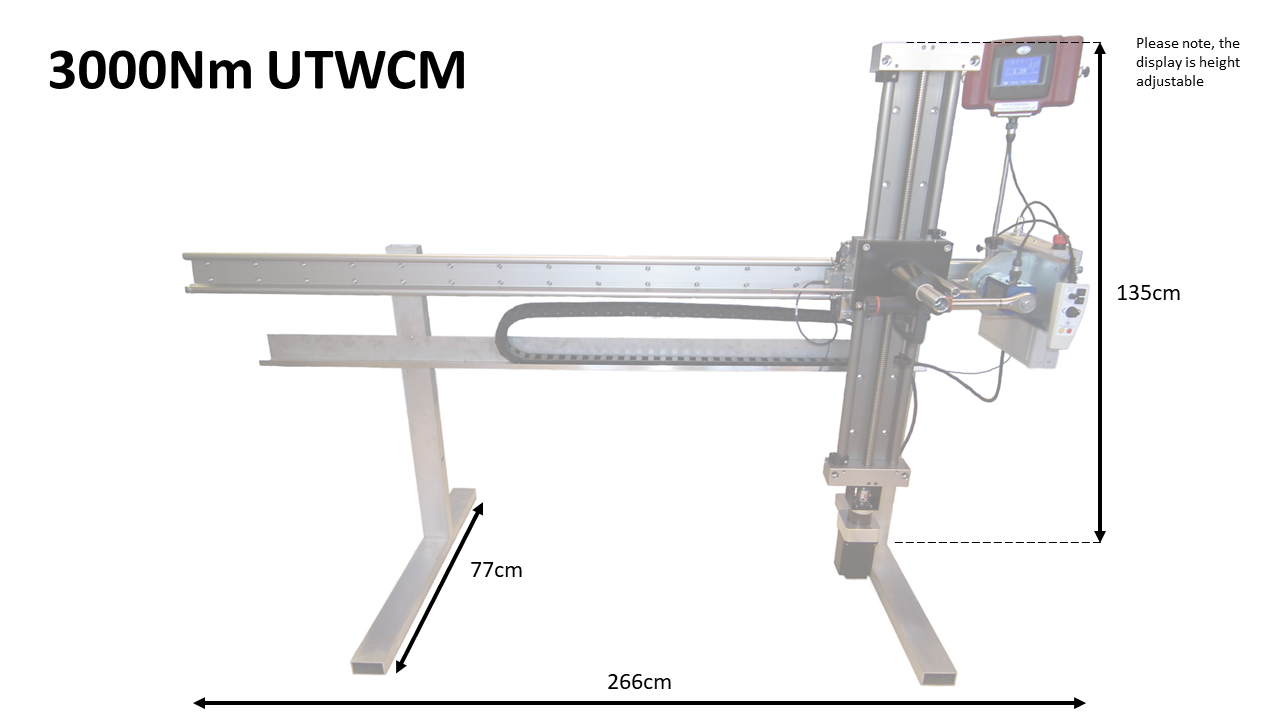

3000Nm UTWCM Dimensions

Maximum applied torque is dependant on wrench length.

More information is available on request.
