Wireless Telemetry Anti 2-Block

The AWS LTD Wireless Telemetry Anti 2-Block is an Anti 2-Block detector with a local battery powered wireless transceiver communicating with our AWS Wireless Telemetry Load Measurement System. It is ideal for applications in systems where running power and signal to an Anti 2-Block is not possible. The transceiver can be mounted within 1m of the Anti 2-Block, in an easy to access location for battery changing. It can be supplied with or without its weight & chain.

Wireless Telemetry Anti 2-Block Features:

  • Long battery life
  • Error free data transmission
  • Active repeater to extend transmission range
  • Remote on / off
  • Environmentally sealed
  • Contacts are broken mechanically
  • Unit pivots from boom head & always follows the angle of the hoist rope

Wireless Telemetry Anti 2-Block Specifications:

Specifications subject to change without notice.

  • Robust construction for reliability
  • Fully weatherproof
  • Fail safe operation
  • 5 & 10kg bob-weight options
  • 3m cable from Anti 2-Block to its transceiver
  • ATEX version available
  • Simple to install
  • Auto power down
  • Transmission distance up to 200m
  • Meets the UKCA, CE RED directive and FCC regulations

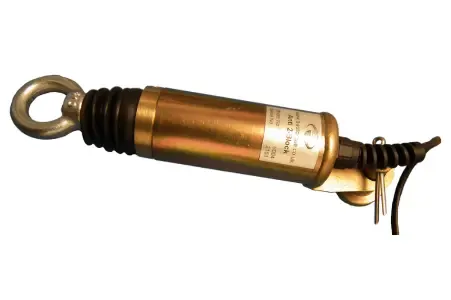

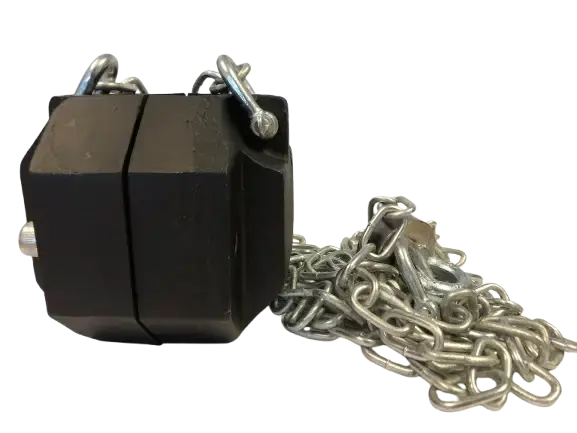

Anti 2-Block for a Wireless Telemetry Load Measurement SystemA large weight attached to a chain

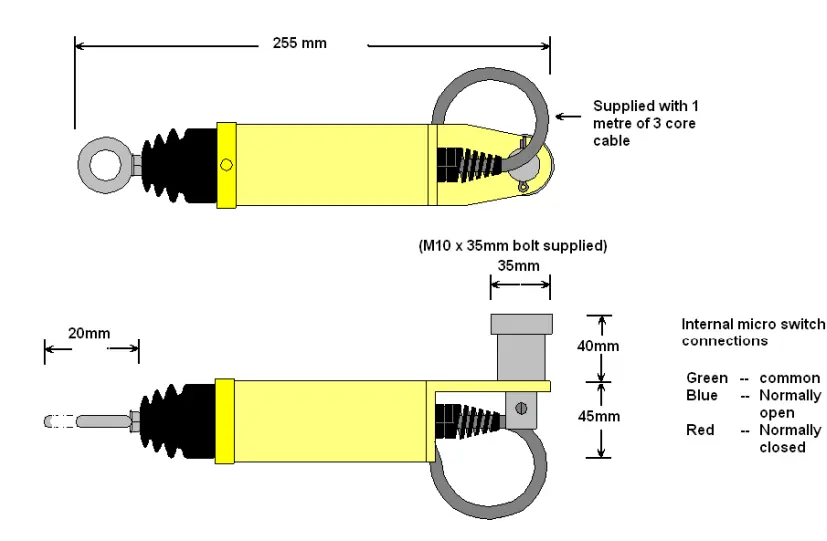

Dimensions
A dimension diagram for an Anti 2-Block
