The AWS 1.5kNm Supported Calibration Stand can be used in conjunction with beams and weights, to calibrate a wide variety of bench and wall mounted torque tool testers, as well as torque transducers.

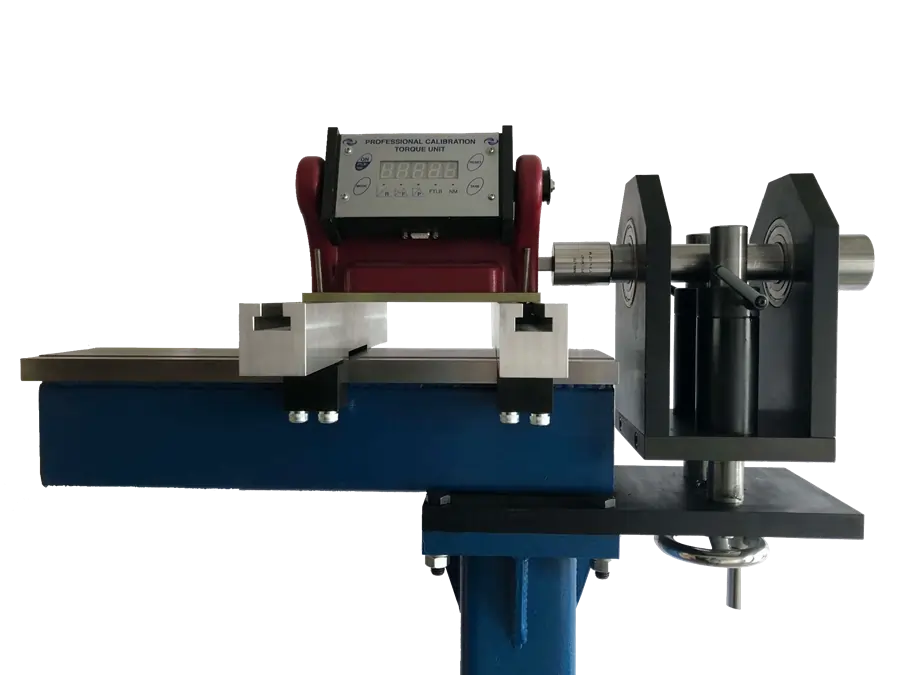

The 1.5kNm Supported Calibration Stand can convert your unsupported torque calibration setup into a supported setup. This means the torque device or torque transducer under test experiences no bending moment from the weight of the beams and weights. This also makes the calibration process safer.
The versatile 1.5kNm Torque Calibration Stand allows for the calibration of a variety of torque measuring devices.

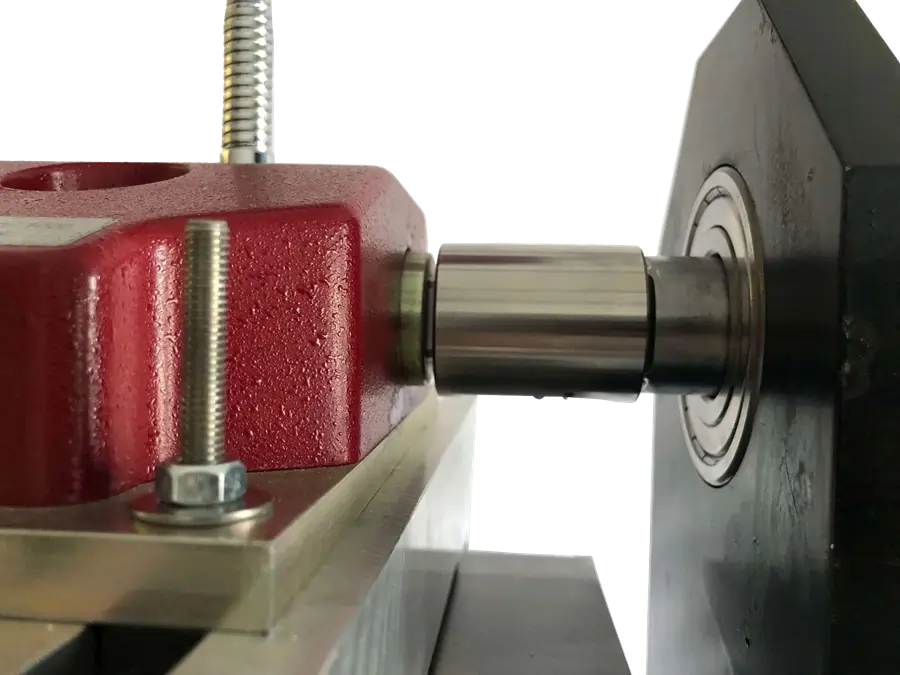

The supported shaft height is adjustable to accommodate various device drive heights.

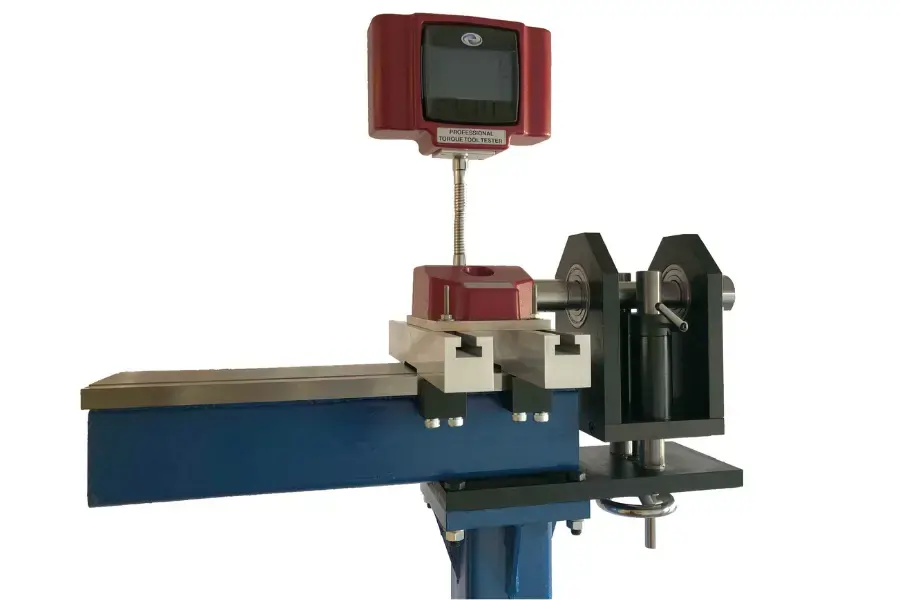

Bars with T-grooves facilitate the mounting of torque testers of varying sizes and mounting hole positions.

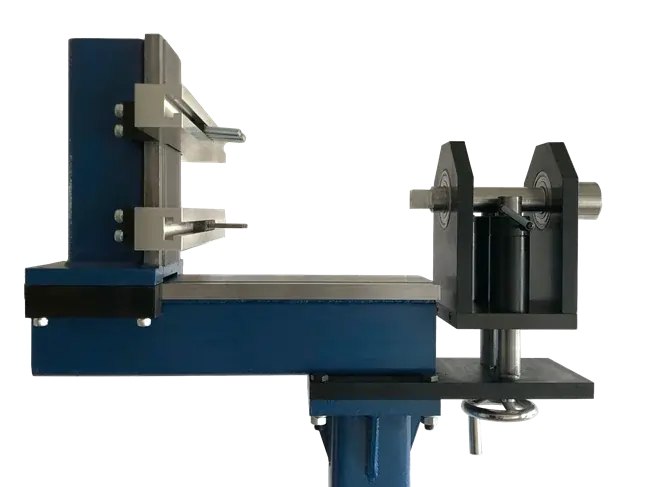

The vertical pillar allows for the mounting of wall-mounted torque testers.
With the 1.5kNm Supported Calibration Stand, minimal maintenance is required.

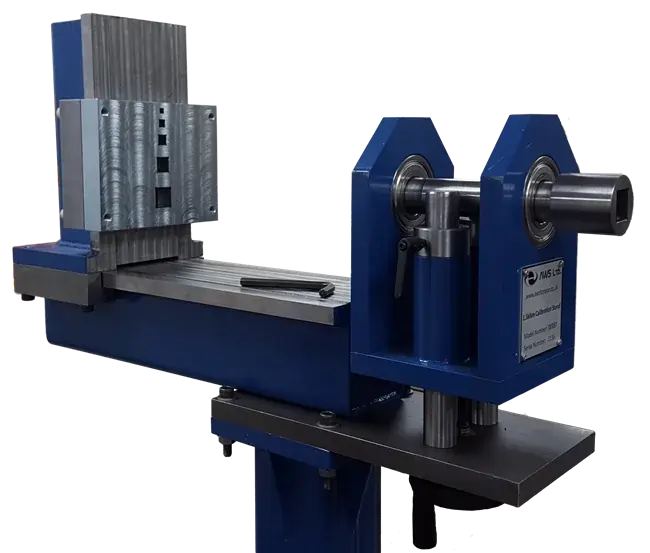

The Inline Transducer option allows for torque transducers to be calibrated on the 1.5kNm (1,106 Lbf.Ft) Supported Calibration Stand using a square drive plate. The option accommodates for torque transducers with 1/4" (6.35mm), 3/8" (9.525mm), 1/2" (12.7mm), 3/4" (19.05mm) and 1" (25.4mm) square drives.

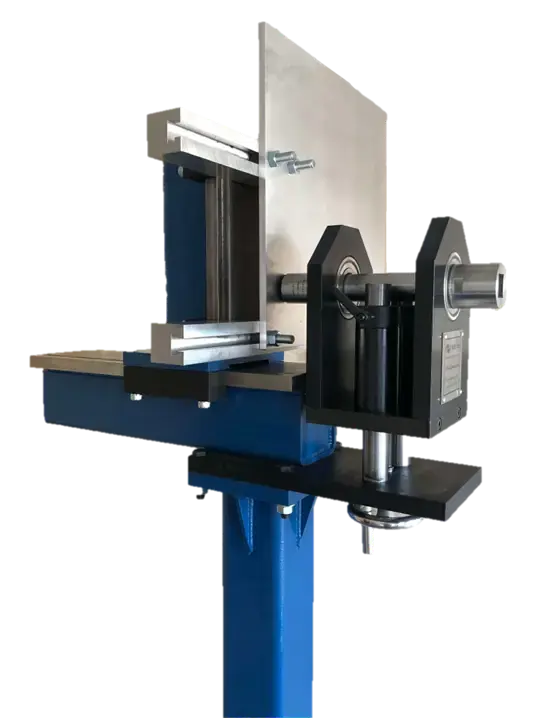

The Acratork option for the 1.5kNm Supported Calibration Stand allows for calibration of Acratork L2 and L3 wall mounted torque testers to be calibrated, along with other wall mounted testers with a large footprint.
Our handy documents shows you several mounting setups using the 1.5kNm Supported Calibration Stand so you can get an insight into how you can use the stand to assist with your torque measuring device calibrations.
View the Configurations Document
Dimensions
| Pedestal Base Size | 0.35 x 0.16m (13.8 x 6.3 inches) |
| Pedestal Height | 1.21m (47.6 inches) |
| Supported Shaft Centre Height from ground | 1.39 to 1.48m (54.7 to 58.3 inches) |
| Depth | 0.72m (28.3 inches) |
| Height | 1.65m (65 inches) |
| Width | 0.4m (15.7 inches) |
| Supported Square Drive | 1 inch |
| Inline Transducer Option Square Drives | 1, 3/4, 1/2, 3/8, 1/4 inch |
| Acratork Plate Size | 0.4 x 0.4m (15.7 x 15.7 inches) |
Depth, Width and Height can be altered if required within certain parameters.
Specification
| Model: SCS - | 3019 | 3019 - NPED | 3019 - PED | 3019 - IT | 3019 - ACR |
| Description: | 1.5kNm Supported Calibration Stand, including Pedestal | 1.5kNm Supported Calibration Stand, no Pedestal | Pedestal Only | Inline Transducer Option | Acratork Option |
