Intelligent Instrumented Torque Transducer Cable (IITC)

The AWS Intelligent Instrumented Transducer Cable is designed to convert your standard mV/V transducers from any manufacturer into truly intelligent digital transducers to be used with AWS torque calibration equipment.

The Intelligent Instrumented Transducer Cable (IITC) contains the AWS Intelligent Instrumentation Package, outputting using CAN bus protocol to communicate with AWS equipment such as the AWS Professional Transducer Display.

Cut the Cost of New Torque Equipment

The Intelligent Cable converts your existing mV/V transducers to be used with AWS equipment such as the Professional Transducer Display or Universal Torque Wrench Calibration Machine.

Allows use of your current range of transducers when purchasing new torque calibration equipment from AWS, cutting down the costs by removing the need for new torque transducers.

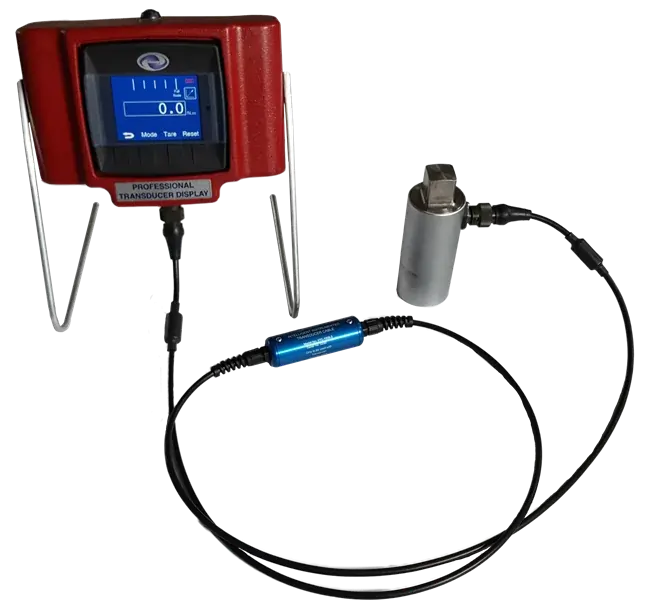

AWS intelligent cable connecting a Norbar transducer with an AWS display

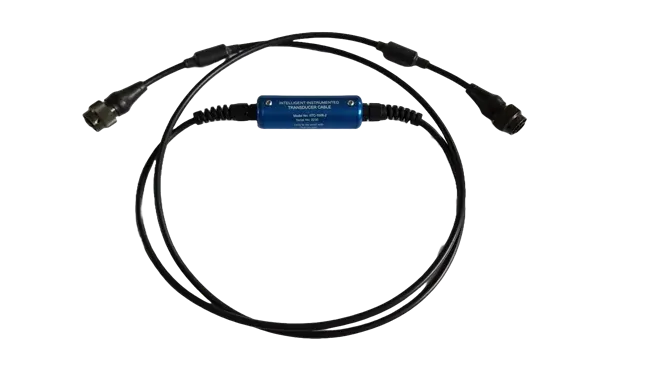

AWS Intelligent Instrumented Transducer Cable on a clear background

Eliminate Signal Loss

The Intelligent Instrumented Transducer Cable features our Intelligent Instrumentation Package, which outputs using the CAN bus protocol when communicating with the AWS products. This digital communication enhances noise immunity and eliminates signal loss when using long lengths of cable, providing flexibility in communicating with other devices and systems.

Modes of Operation

When used with the AWS Professional Transducer Display, the Intelligent Instrumented Transducer Cable can allow your mV/V transducers to be used in three modes of operation.

First Peak Mode

Used for click type torque tools, 1st Peak Mode detects, shows and retains the first peak reading in a fast dynamic memory, or is cleared automatically after three seconds if the auto cancel option is selected.

Peak Mode

Used for dial and cam type torque tools, Peak Mode shows, updates and retains the maximum reading in a fast dynamic memory. The maximum reading is retained until manually cleared.

Run Mode

Run Mode shows the torque value as they change as a live reading output.

Lengths

These cables come in a selection of standard lengths. If a specific length is required, we will manufacture one to specification. The transducer (mV) side is always 1m long, to minimise signal loss.

Model: IITC-1008-12510
Length:1m2m5m10m

Please note each cable is calibrated to a specific transducer, and so becomes unique to that transducer. You cannot use one Intelligent Instrumented Transducer Cable with multiple mV/V transducers.
